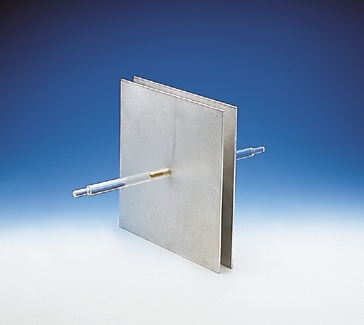

Plate CapacitorItem Code: 06233-02(15-276)
Function and Applications
To investigate the relation between charge, voltage and capacity on a plate capacitor and to measure dielectric constants.
Equipment and Technical Data
- Two aluminium plates.
- One platefixed to an insulating rod with 4 mm connecting socket.
- Rod length: 190 mm.
- Rod diameter: 12 mm.
- End of the rod reduced to 10 mm.
- Second plate with 4 mm plug pin e. g. to be held in insulating stem or to connect two capacitors in series using double socket.
- Plate dimensions (mm): 283 x 283 x 4.
- Standard accessory: set of spacer plates.
